Webpage

A web deployment of this pipeline can be accessed via our group website: https://bioinformaticslab.erc.monash.edu/linc2function

Usage

linc2function

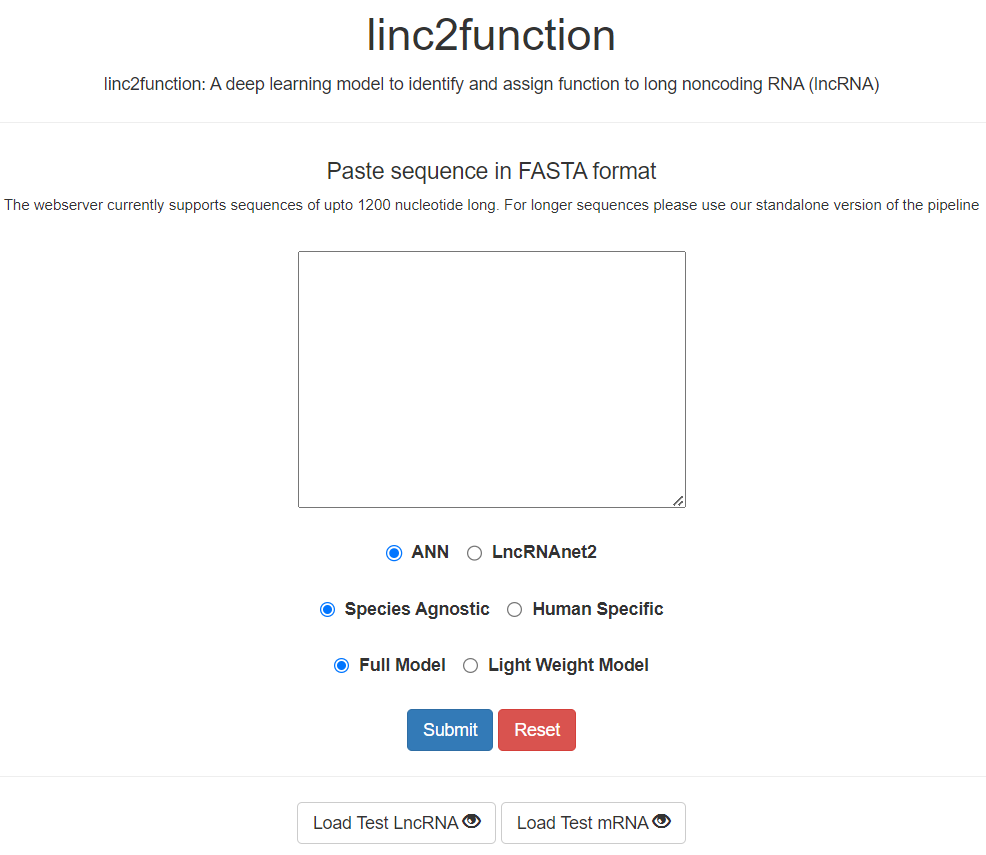

After loading the URL, the following page appears;

_images/initial.png

Sequence

This text box (highlighted) allows to paste the transcript sequence in FASTA format under study;

_images/initial_sequence.png

Architecture

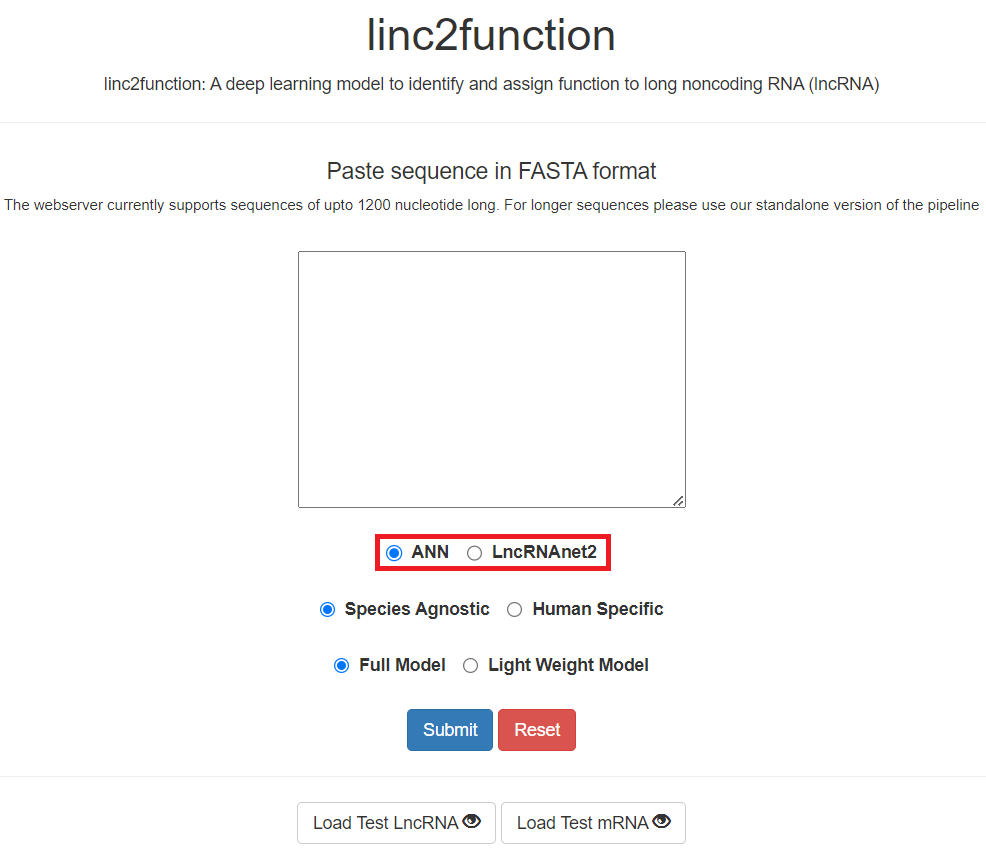

The fitst set of selection buttons (highlighted) is for selecting the model architecture i.e. Artificial Neural Network (ANN) or Convolutional Neural Network (CNN) labelled as LncRNAnet2;

_images/initial_architecture.png

Mode

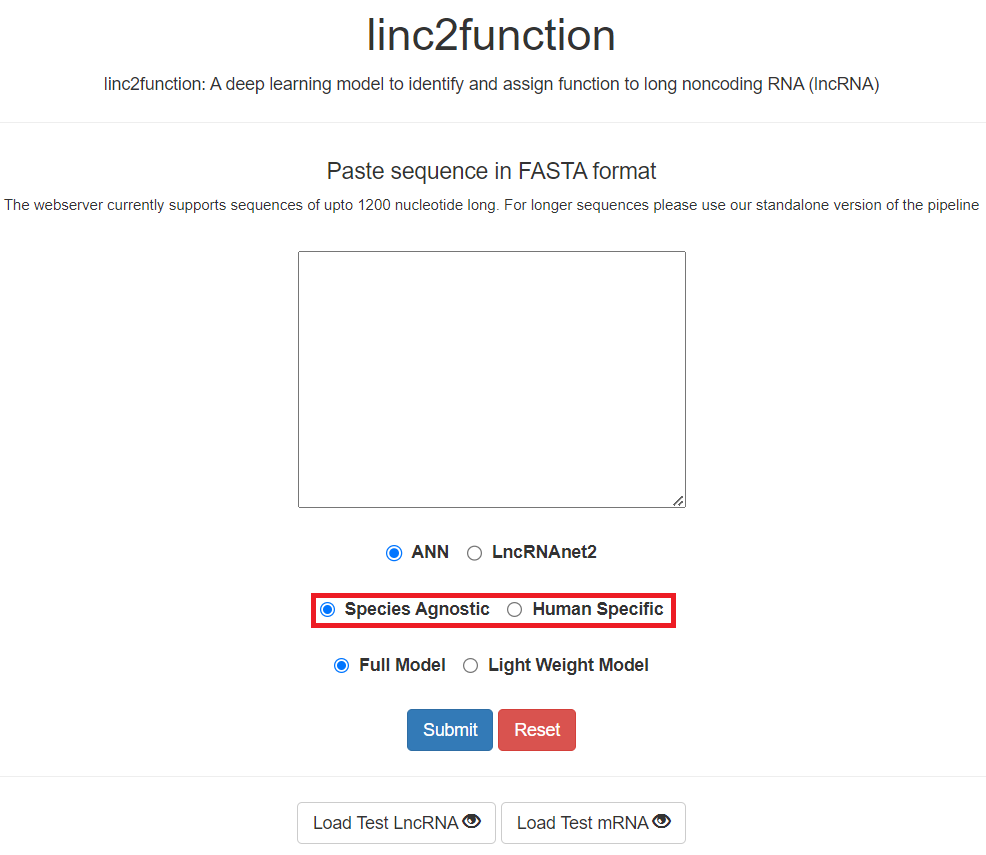

The next set of selection buttons (highlighted) is for selecting either Species Agnostic mode or Human Specific mode;

_images/initial_mode.png

Type

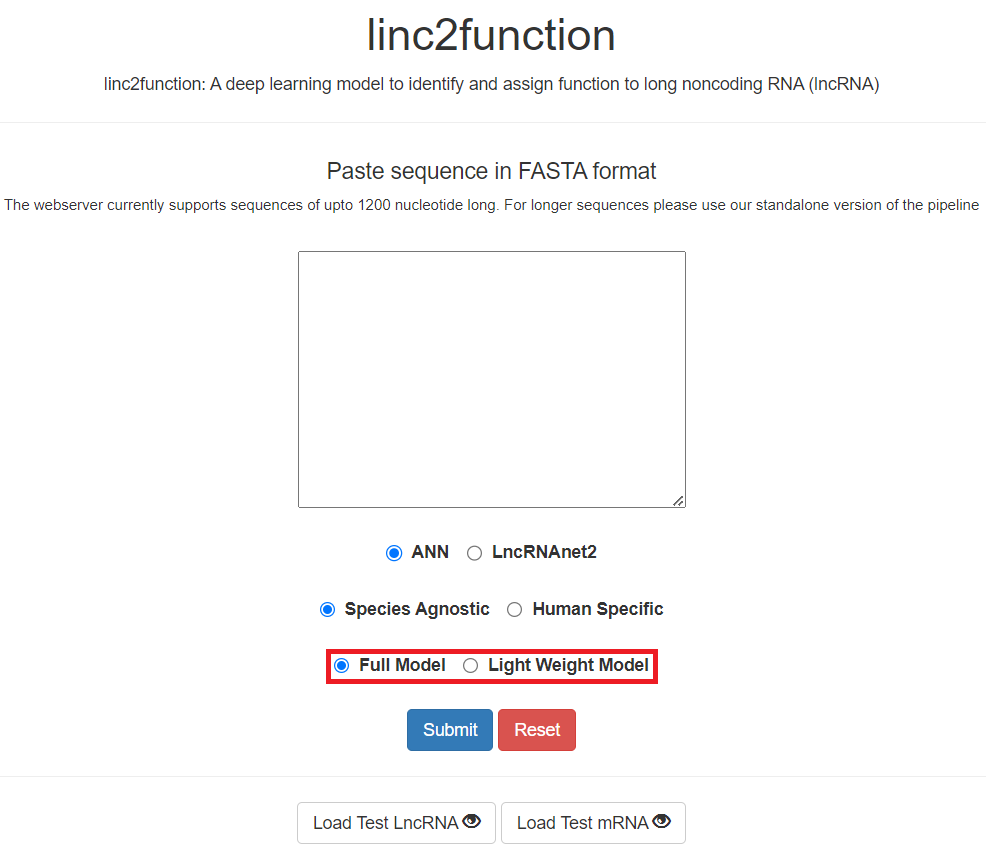

The final set of selection buttons (highlighted) is for either selecting a basic model (Light Weight Model) or the standard model (Full Model);

_images/initial_type.png

Submit

This button (highlighted) is used to submit the page once the sequence is pasted and the selections are made;

_images/initial_submit.PNG

Reset

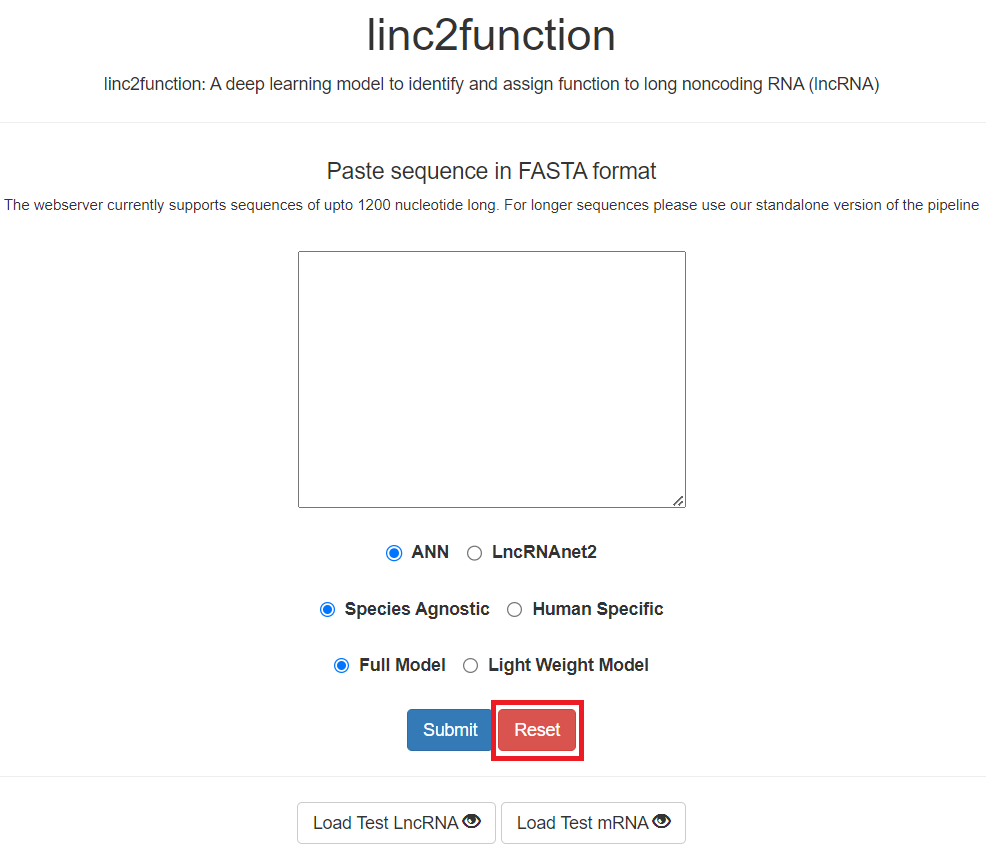

This button (highlighted) is used to clear the page;

_images/initial_reset.PNG

Test Data

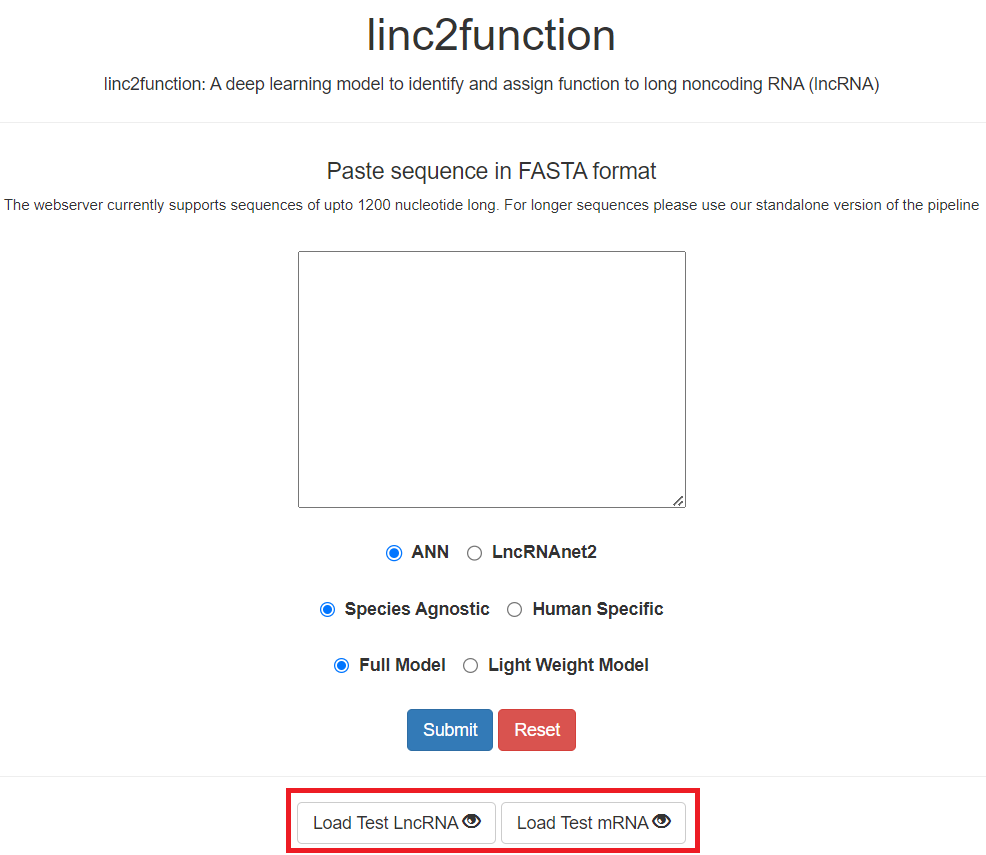

We also provide option (highlighted) to load the test data to allow users to explore the utility.

_images/initial_load.PNG

Upon loading the sequence (highlighted) the pipeline can be run by pressing the submit button (highlighted).

_images/seq_loaded.PNG

Results

Transcript Details

This section provides the transcript name (as obtained from the FASTA data), probability of this sequence being LncRNA as per the selections in the previous page, and its triplex forming potential.

_images/result_transcript_details.PNG

SHAP values

This section contains the SHapley Additive exPlanations (SHAP) values for the selected model indicating the relative importance of the individual features in model prediction.

_images/result_shap_diagram.png

Protein Interactome

This section lists the predicted Protein Interactome of the transcript, containing the RNA Binding Protein (RBP), scores, binding site seuqence and its coordinates.

_images/result_protein_interactome.PNG

RNA Interactome

This section lists the predicted RNA Interactome of the transcript, containing the target name, target length, associated energy measurements, and the coordinates of both the transcript and the target.

_images/result_rna_interactome.PNG

RNA Structure (Arc)

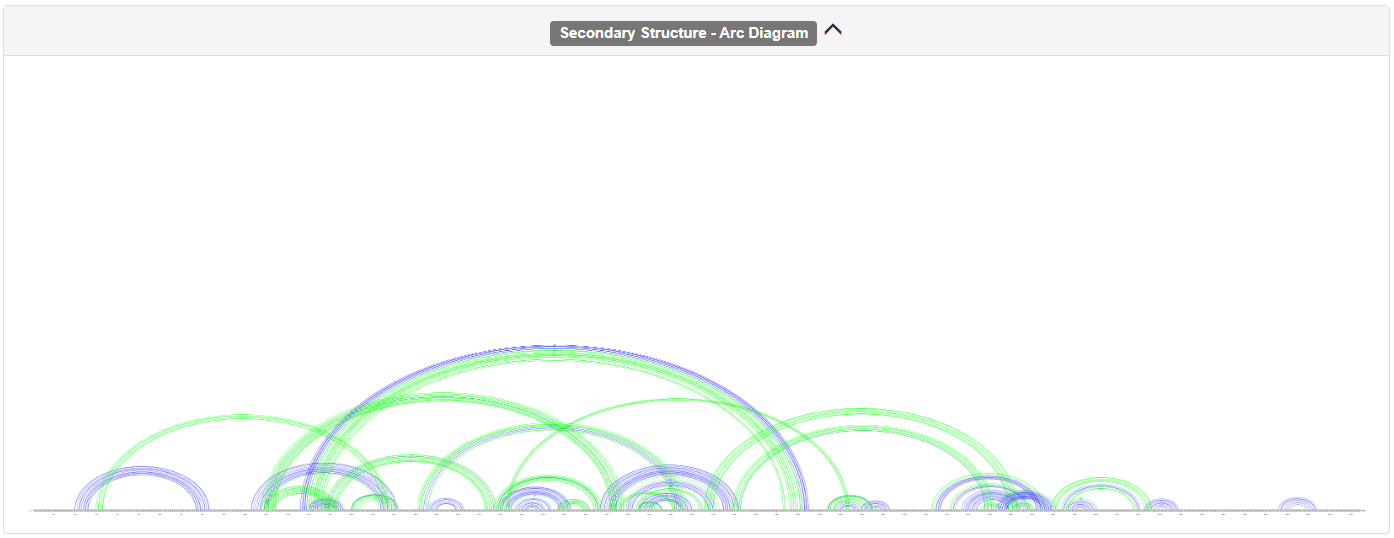

This section lists the predicted RNA secondary structure of the transcript as an arc diagram.

_images/result_ss_arc.PNG

RNA Structure (2D)

This section lists the predicted RNA secondary structure of the transcript as a 2D diagram.

_images/result_ss_2d.PNG

RNA Structure (2D)

Lastly, the section lists input sequence and an URL for accessing the generated analysis in future.

_images/result_result.PNG

For any feedback or queries please contact: sonika.tyagi@monash.edu
